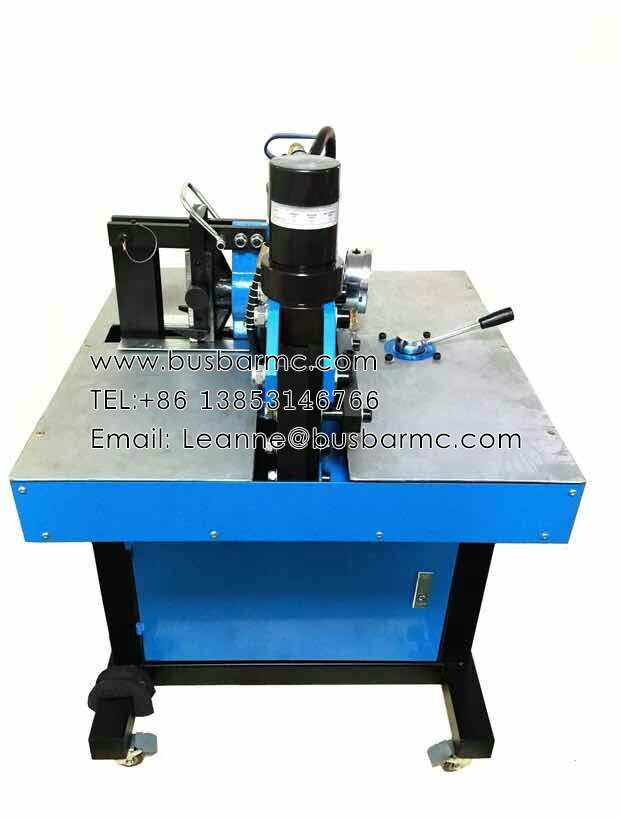

Combined Busbar Processing Machine LT-30 For Copper

The LT-30 is a high-efficiency combined busbar processing machine designed for copper applications. It integrates bending, cutting, and punching functions into one robust system. Ideal for fabricating busbars used in switchgear and transformers. This hydraulic busbar machine ensures precision and productivity.

Ask for Price WhatsApp

What the combined LT-30 machine covers

The LT-30 is a combined copper busbar processing machine formed from three portable units, giving punching, cutting and bending on one job. LT positions it for power distribution boxes, transformers and switch cabinets — the three applications that dominate busbar work in Nigerian low voltage assembly. Because the units are portable, the same machine serves a fixed production bench and on-site retrofit work, which matters for contractors upgrading existing boards rather than building new ones. It is specified for high production capacity and work efficiency rather than CNC positioning, so it is chosen where throughput per naira matters more than programmed repeatability.

Measured performance — LT-30 (combined)

Test conditions: Copper busbar punching, cutting and bending on three combined portable units used as a single processing station.

Measured values: 3 processing functions combined (punching, cutting, bending); three portable units on one arrangement; documented applications are power distribution boxes, transformers and switch cabinets.

Benchmark: Compared with buying three separate portable machines: the same three functions from one shared arrangement, so both the bench footprint and the changeover between operations are smaller.

content

LT-30A

busbar bending cutting punching machine

Product Information

Product name: Combined busbar processing machine LT-30A for copper

Main features: 1. It can be used at any occasion.

2. Small volume and easy to move.

3. High production capacity and high work efficiency.

Product application: Power distribution boxes, transformer, switch canbinet.

busbar processing machine

Functions

LT-30A has three functions : punching , cutting , bending.

copper busbar bending machine

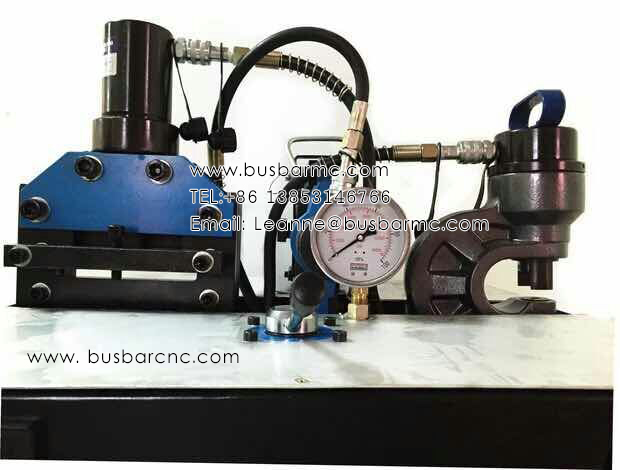

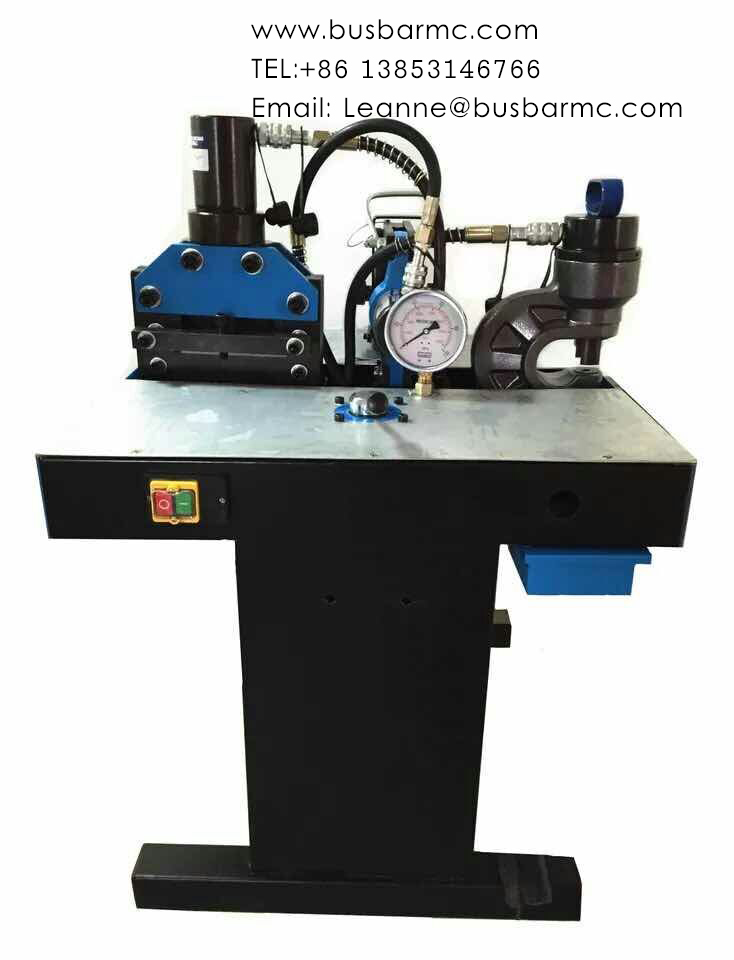

It is combined with three portable busbar processing machine.

3 in1 busbar machine

Processing Samples

cnc busbar machine

Our Factory

busbar bending machine

Business Partner

Our products sell well in Europe, North America, South America and Southeast Asia.

Our company is a partner of first-line brands such as ABB, Siemens and Schneider.

hydraulic busbar bending machine

Techinical Parameters

Item	Model
Item	LT-30A
Rated oil pressure (kn)	630
Max. processing width (mm)	150
Max. processing thickness (mm)	10
Out dimension (mm)	690×700×1060
Diameter of standard dies (mm)	¢10.5、¢13.8、¢17、¢20.5
Input voltage	220V/50HZ
Container size (mm)	760×770×1320
Machine weight (kg)	170

Item	Model
	LT-30B
Rated oil pressure (kn)	630
Max. processing width (mm)	200
Max. processing thickness (mm)	12
Out dimension (mm)	900×700×1160
Diameter of standard dies (mm)	¢10.5、¢13.8、¢17、¢20.5
Input voltage	220V/50HZ
Container size (mm)	990×760×1320
Machine weight (kg)	205

Hot Tags: combined busbar processing machine LT-30A for copper,

Hot Tags: cnc busbar machine, 3 in1 busbar machine, busbar bending machine, busbar punching machine, busbar cutting machine, copper busbar bending machine, cnc bending machine, cnc punching machine, bending machine, busbar machine, copper busbar machine, cutter machine, machine bending, China, suppliers, manufacturers, factory, price

LT-30A combined busbar processing machine for copper FAQ: What is the LT-30A busbar machine used for? The LT-30A is a versatile 3-in-1 busbar processing machine designed for punching, cutting, and bending copper busbars. It is ideal for use in power distribution boxes, transformers, and switch cabinets.

What are the main features of the LT-30A? It is compact and portable, allowing it to be used in any location. It offers high production capacity, efficient operation, and can be easily moved due to its small size and lightweight design.

What are the technical specifications of the LT-30A? The machine has a rated oil pressure of 630 kN, maximum processing width of 150 mm, maximum processing thickness of 10 mm, and uses standard dies with diameters of 10.5 mm, 13.8 mm, 17 mm, and 20.5 mm. It operates on 220V/50Hz power supply, with an overall dimension of 690×700×1060 mm and weight of 170 kg.

How does the LT-30A perform punching, cutting, and bending? The machine is equipped with three functional units. The punching unit can make round and oblong holes. The cutting unit uses a vertical cutting mode ensuring flat, burr-free edges. The bending unit allows horizontal, vertical, flat, and U-shaped bending by changing molds.

Can the LT-30A be used with other molds or for custom processing? Yes, different dies or tools can be installed to achieve special shapes, embossing, flattening, twisting, or crimping as required by the user.

Is the LT-30A suitable for portable use? Yes, the LT-30A is lightweight and compact, making it easy to move to different work locations or production areas.

Where is the LT-30A sold and who are its main business partners? LT-30A machines are sold globally in Europe, North America, South America, and Southeast Asia. The company collaborates with first-line brands such as ABB, Siemens, and Schneider.

What after-sales service is provided for the LT-30A? The company offers full support including installation guidance, training, and regular follow-ups to ensure high performance and customer satisfaction.
