Three Unit Busbar Processing Machine With Manual Control 303U-3-C

The 303U-3-C is a versatile 3-in-1 busbar processing machine that combines CNC punching, cutting, and bending functions. Ideal for processing copper busbars with a force of 300KN, it is widely used in switchgear and transformer manufacturing. This hydraulic busbar machine offers high precision and efficiency for electrical component production.

Ask for Price WhatsApp

What the 303U-3-C manual control machine does

The LT 303U-3-C is a three-unit busbar processing machine with manual control, built for workshops that want predictable mechanics over programming. Its cutting unit works vertically with flat-blade shearing, leaving a flat cut face without burrs or droop; the punching unit carries a six-mode toothed turret, so dies are indexed rather than swapped; and the bending unit does horizontal bending, switching to vertical by die change. Embossing, flattening, twisting and cable-end crimping are all reachable by die changes. It suits maintenance departments and small switchgear builders working to drawing rather than to a production cycle.

Measured performance — 303U-3-C (manual control)

Test conditions: Copper and aluminium busbar processed on a three-unit frame with manual control; cutting unit operating vertically with flat-blade shearing; punching on a six-mode toothed turnplate; bending unit set for horizontal bending and convertible to vertical bending by die change.

Measured values: 6 documented functional characteristics: flat-blade vertical cutting with no waste, burrs or droop; six-mode toothed punching turret avoiding frequent die changes; horizontal bending convertible to vertical; embossing, flattening, twisting and cable-end crimping by die change; custom dies for special shapes on request; closed integral bending frame.

Benchmark: Toothed six-mode turret against single-die punching: dies are indexed in place instead of being removed and refitted, which is where small-batch jobs lose most of their time.

content

Product Description

copper busbar bending machine 303U-3-C

This series of busbar processing machine has three processing units: punching, shearing/cutting and bending. The three units can be used simultaneously or sequentially, the working stroke of each processing unit can be easily adjusted, which shortens the processing time and improves production efficiency. The main function is processing copper and aluminum busbar.

copper busbar bending machine 303U-3-C

Technical Parameters

Item	Model
	303U-3-C
Nominal force (kn)	300
Punching dia. range (mm)	ф4.3～ф25
Max.thickness (mm)	12
Max.width (mm)	150
Max.shearing thickness (mm)	12
Max.shearing width (mm)	150
Max.horizontal bending width (mm)	150
Max.horizontal bending thickness (mm)	12
Max.vertical bending size (mm)	10×100
Power (kw)	1×4KW
Table size (mm)	1650×1050
Outside dimension (mm)	1720×1220×1220
Container size (mm)	1800×1300×1430
Total weight (kg)	1220KG

Main Features

1. The cutting processing unit adopts vertical processing mode, flexible and convenient to operate. It adopts flat blade cutting, and the incision interface of workpiece is flat, no waste, burrs and droop.

2. The punching unit uses a six-mode turnplate in tooth shape with good view, and no need to change the dies frequently, and the operation is simple and efficient.

3. The bending unit adopts a horizontal bending. By changing molds, could be completed the processing of flat bending or vertical bending.

4. A variety of processing functions such as embossing, flattening, twisting, and crimping of cable ends can be achieved by changing the molds.

5. The machine has four casters, so it is easy to be moved everywhere needed.

6. Different molds or tools can be installed according to user requirements to complete special shape processing.

Product Details Dispaly

cnc busbar bending machine

Processing

Punching samples

busbar punching machine

It can punch round hole and oblong hole with punching unit.

Cutting samples

busbar cutting machine

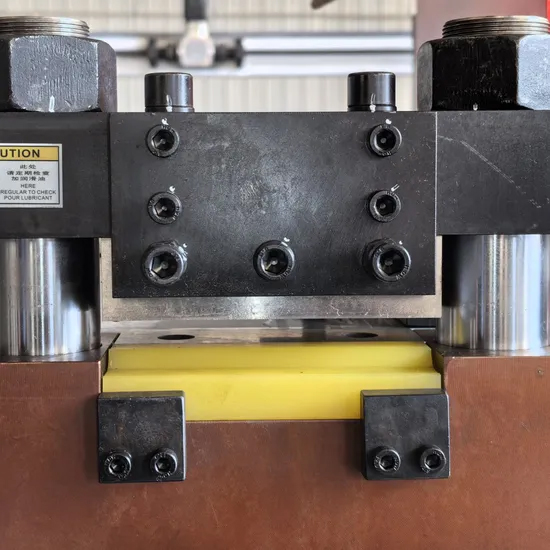

The cutting unit adopts vertical cutting mode, flexible and convenient to operate. The interface of busbar is flat, no waste, no burr and droop.

Bending samples

copper busbar bending machine

The bending unit adopts closed integral frame structure. It can bend flat bending, horizontal bending, vertical bending and U-bending.

Other Processing Samples

3 in1 busbar machine

hydraulic busbar bending cutting punching machine

Our Factory

busbar processing machine

Our Service

Customer inquiry - Quote - Order - Release production notice - Ship - After sale service

busbar machine suppliers

Our after-sales service engineers will also have return visit to you on a regular basis to listen to your valuable opinions and continuously improve product quality.

Package & Delivery

bending machinery

We use waterproof plastic film wrapped inside and wooden cases outside.

Our Clients

LT Company mainly deals in various types of busbar processing equipment.Its performance is excellent, and it is sold well in more than 100 countries around the world, including the United States, Britain, Germany, Russia, Canada, Belgium, Argentina, New Zealand, Czech Republic, Romania, Ireland, Peru, Chile, Australia, Hungary, Mexico, Slovenia, Malaysia, Brazil, Vietnam, Saudi Arabia, Pakistan, etc.

cnc bending machine manufacturers

Hot Tags: three unit busbar processing machine with manual control 303U-3-C, China, suppliers, manufacturers, factory, price

LT Busbar Machine Videos:

303U-3-C 3 in 1 manual hydraulic busbar machine FAQ: This FAQ covers common questions regarding the 303U-3-C busbar processing machine, which integrates punching, shearing/cutting, and bending functions in a single unit.

Q1: What materials can the 303U-3-C process?

A1: The 303U-3-C machine is designed for processing copper and aluminum busbars of various specifications.

Q2: What are the maximum processing dimensions?

A2: The machine can handle a maximum thickness of 12mm and a maximum width of 150mm for punching, cutting, and bending operations.

Q3: How is the punching unit designed?

A3: The punching unit uses a six-mode turnplate in tooth shape, reducing the need for frequent die changes and ensuring efficient and precise punching.

Q4: What type of cutting does the machine use?

A4: The cutting unit adopts a vertical flat blade cutting mode, producing a smooth, burr-free interface without waste.

Q5: Can the machine perform different bending operations?

A5: Yes, the bending unit supports flat bending, horizontal bending, vertical bending, and U-bending by changing molds as needed.

Q6: Are there additional processing functions?

A6: By using different molds or tools, the machine can perform embossing, flattening, twisting, and crimping of cable ends.

Q7: Is the machine portable?

A7: The 303U-3-C is equipped with four casters, making it easy to move and operate on different job sites.

Q8: What power supply does the machine require?

A8: It operates on a 1×4KW power supply.

Q9: What are the table and machine dimensions?

A9: The table size is 1650×1050mm, the overall machine dimensions are 1720×1220×1220mm, and the total weight is 1220kg.

Q10: Who can use this machine?

A10: It is suitable for workshops, electrical manufacturing plants, switchgear production, busbar fabrication, and other industrial electrical equipment manufacturing applications.

Q11: What support and services are provided?

A11: LT provides complete after-sales service including installation guidance, operation training, regular follow-up, and continuous product improvement based on customer feedback.
